Terracotta Roof Tiles: What to Check Before You Buy

The short answer: Terracotta roof tiles weigh roughly 900 to 1,250 pounds per square (100 square feet), depending on the profile, and the residential code allows them only on slopes of 2½:12 or steeper. Clay tile must meet ASTM C1167; in freezing climates ask for Grade 1. Maintained, a clay tile roof lasts generally about 100 years.

Most roofing guides describe terracotta tile as timeless and move on to which color looks best with white stucco. That skips the two questions that actually decide whether tile belongs on a given house: can the roof structure carry it, and is this specific tile rated for the winters where the house sits. Below are the numbers for both, then how to keep a clay tile roof you already have instead of tearing it off.

Clay vs. Concrete Tile: The Difference That Actually Matters

Clay and concrete tile look similar from the street, and that's by design. Concrete tile was developed in the latter part of the 19th century as a substitute for clay, and it is a dense mix of portland cement, aggregates such as sand, and pigment, extruded from high-pressure machines rather than fired. The National Park Service's technical brief on clay tile roofs is blunt about what that substitution costs: concrete tile "tends to lack the color permanence and the subtle color variations inherent in natural clay tile," and a photo caption notes that concrete roofing tiles "are generally thicker than clay tiles, and tend to fade and lose their color." It stays popular because it reproduces the general look of clay "at a somewhat lower cost and weight."

Clay's color is the clay itself: the brief explains that the classic terracotta red comes from clay with a large percentage of iron oxide. Clay also has the longer track record. The brief puts clay tile's life expectancy at "generally about 100 years, and often several hundred," while stressing that a roof still needs a regular maintenance program, and that its life depends on the nails, flashing and other components as much as on the tiles themselves.

Tile Profiles and Which Houses Wear Them

Erstellt mit AI

"Terracotta tile" isn't one shape. The two profiles that show up on most Mediterranean-style houses are genuinely different products, and the NPS brief points out that they are equated "despite the fact that the former are usually 1-piece interlocking tiles and the latter are single ½ cylinders that overlap." A Spanish, or "S," tile is a single piece with both a convex barrel section and a flat section; a raised lip on the flat side hooks over the barrel edge of the next tile, and the result is a fairly low, undulating roofline. A Mission or barrel roof is built from two pieces: concave pan tiles in rows, and convex cover tiles laid over the joints between them. It sits higher off the deck (Ludowici gives 3 inches for its Spanish tile and 4⅜ inches for its Mission tile) and reads as a deeper, more shadowed roofline, the look most associated with Spanish Colonial Revival houses and California missions.

There's a third family worth knowing: flat and interlocking tiles, closer in profile to slate or wood shingles, which read as quieter and less overtly Spanish. They still show up on some Mediterranean-influenced houses that want the fireproofing and lifespan of clay without the deep barrel shadow lines.

Weight and minimum-slope numbers above are the manufacturer's own and come from Ludowici's published specification sheets for its Spanish and Straight Barrel Mission profiles; other manufacturers' numbers will vary somewhat by tile size and thickness, so treat these as a starting point for budgeting, not a quote.

Erstellt mit AI

Roof Weight and the Structural Check

At 900 to 1,250 pounds per square, clay tile is far heavier than the roofing most American houses were originally framed for. The code doesn't leave the deck to chance: the International Residential Code says concrete and clay tile "shall be installed only over solid sheathing," with spaced lumber sheathing permitted in Seismic Design Categories A, B and C.

If you're building new and framing for tile from the start, this is mostly a line item for your architect. If you're converting an existing asphalt-shingle roof to tile, it's a structural question, not a roofing-crew estimate. Our rule of thumb: have an engineer check the rafters and their spacing before you pick a tile, not after the order is placed. The same goes for exposed wood inside: if you're adding rustic wood beams under a tile roof, find out which ones are decorative and which carry load before anyone cuts or sands them.

“Less durable nails reduce the longevity of a clay tile roof which depends on the fastening agents and the other roofing components, as much as on the tiles themselves.”

National Park Service, Preservation Brief 30

Slope, Sheathing and Underlayment: What the Code Requires

Code sets a hard floor on pitch. Per IRC Section R905.3.2, "clay and concrete roof tile shall be installed on roof slopes of 2½ units vertical in 12 units horizontal (25-percent slope) or greater." From 2½:12 to 4:12, "double underlayment application is required." And under Section R905.3.4, "clay roof tile shall comply with ASTM C1167," the standard behind the weathering grades below. Manufacturers can set a steeper minimum for a profile than the code does, as Ludowici's 4:12 and 5:12 show, so the spec sheet decides as much as the code.

A roof too flat for its tile, or missing the double underlayment in that range, is the kind of detail an inspector flags, and a buyer's inspector flags again later. Local codes can amend these sections, so check with your building department.

Freeze-Thaw Grade: Picking Tile for Cold Winters

Clay tile isn't automatically a warm-climate-only material, but not every clay tile is built for a hard freeze. ASTM C1167 "covers clay tiles intended for use as roof covering where durability and appearance are required to provide a weather-resistant surface of specified design," and it sorts tile into three grades "having various degrees of resistance to weathering." Grade 1 is the one to ask for if you get repeated hard freezes: a tile testing lab's explainer says "tiles that pass Grade 1 are suitable for climates with repeated freezing temperatures." Ludowici's own spec sheets for both the Spanish and Mission profiles above list them as "ASTM C1167 Grade 1 Roof Tile With Water Absorption Less Than 2%," and Westlake Royal's US Tile line advertises the same Grade 1 rating on its Mission tile.

If a supplier can't confirm the grade of imported tile in writing, that's a reason to ask more questions before you order a full roof's worth.

Fire and Wind

“By far the most significant factor in popularizing clay roofing tiles during the Colonial period in America was the concern with fire.”

National Park Service, Preservation Brief 30

Fire is the original reason clay tile spread in American towns: devastating fires in London in 1666 and Boston in 1679 led to fire codes in New York and Boston that encouraged tile roofs. Today's spec sheets still lead with it; both Ludowici profiles above are listed as Class A fire rated.

Wind resistance is a function of how the tile is fastened, not just what it's made of. NPS notes that fastening requirements increase with roof pitch: for roof rises over 16 inches in a 12-inch run, and in areas prone to earthquakes or hurricanes, "every tile may be secured with both a nail and a copper or non-corrosive metal clip, and often also with a dab of roofing mastic or mortar." If you live somewhere with named storms, ask your roofer which fastening method they're specifying and why, not just which tile.

Living With an Old Clay Tile Roof

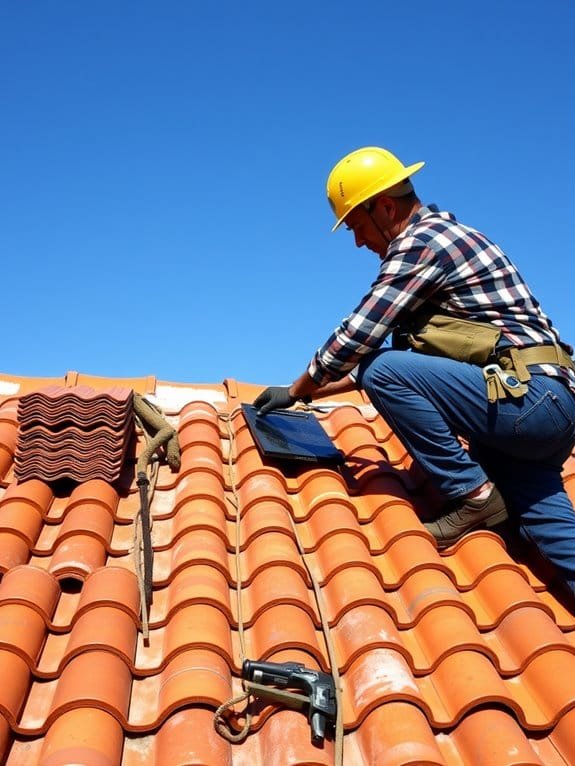

Walking on Tile Without Breaking It

Clay tile is more fragile underfoot than it looks. If you have to walk a tile roof, Ludowici's advice is to "use the 2–3″ headlap area of the tile laps," where one tile overlaps the next, to minimize breakage. The same company says it has terra cotta roofs in North America dating back to 1888. NPS's installation notes back this up from the fastening side: nails "should not be driven too deeply into the furring strips because too much pressure on the tile can cause it to break during freeze/thaw cycles, or when someone walks on the roof." For anything beyond a quick visual check, hire a roofer who works tile regularly.

Replacing and Matching Tile

Order more tile than the math says you need. NPS recommends building in "approximately 10-20 per cent allowance for breakage, and extra tiles to store for repairing incidental damage later on," ordered as part of the original job, not after a storm. Matching old tile later is genuinely hard. NPS describes the 1992 re-roofing of Berry Hill Mansion in Frankfort, Kentucky, built in 1900: reproducing the original tiles wasn't possible within the budget, a stock tile was chosen as a close match, and "the exact color and glaze of the original tiles also could not be duplicated because the coloring material is no longer available." If your roof is more than a couple of decades old, keep a labeled box of spares in the garage.

Color: Blended, Flashed and Aged

Erstellt mit AI

The color range runs wider than most people expect. NPS notes that lighter buff and beige colors, as well as black, appear on traditional tile, and that historic glazed tiles range from reds, browns and buffs to blacks and purples, blues (often made with smalt, or powdered blue glass) and greens (usually made with copper slag). The same glazed blues and greens turn up indoors in Spanish mosaic tile. Even within a single historic firing, kiln temperature was uneven enough that "tiles closest to the fire cooked all the way through and turned a darker red, while tiles farthest from the flames were likely to be smoke-stained, and lighter orange in color." Manufacturers now offer that variation on purpose: Ludowici's spec sheets list its tiles in "all standard and custom colors, mists and blends." A blend mixes several shades on one roof, which is why a good tile roof rarely looks flat from the street. If you're matching a stucco color to the roof, our Spanish stucco color guide starts from the tile.

Terracotta Roof Tiles in Other Styles

• Timeless exteriors lean on slate or standing-seam metal instead of tile, for a quieter, less regional roofline.
• Cottage houses more often use wood shake or asphalt shaped to mimic shingle profiles, not fired clay.
• Coastal houses tend toward lighter colors, where a buff or beige tile blend fits better than deep red.
• Vintage-modern rooflines sometimes pair a single run of flat clay tile with plain stucco, skipping the barrel profile entirely.

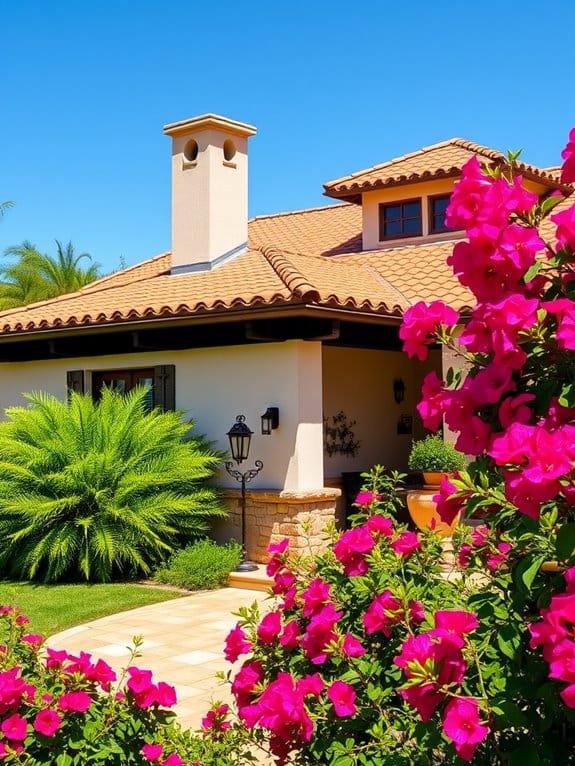

• Mediterranean is where barrel and Mission tile stay the default, alongside arched doorways and a hacienda-style garden of drought-tolerant plants.

Not sure which of these actually fits your house? The decorating style quiz is a faster way to narrow it down than scrolling roof photos.

The Short Version

• Ludowici's Spanish tile: 900 lbs per square, 4:12 minimum slope; its straight barrel Mission tile: 1,250 lbs per square, 5:12.
• Code floor for any clay or concrete tile roof: 2½:12 slope (IRC R905.3.2), with double underlayment required between 2½:12 and 4:12.
• Clay roof tile must comply with ASTM C1167 under the code; ask for Grade 1 in any freeze-thaw climate.
• Clay tile lasts generally about 100 years, often several hundred; concrete tile tends to fade and lose its color.
• Converting a shingle roof to tile is a structural-engineer question first, tile-color question second.
• Order about 10 to 20 percent extra for breakage plus spares to store. Matching color and glaze later is not always possible.
• Walk only on the 2 to 3 inch headlap, and hire a roofer experienced with clay tile for anything beyond a visual check.
