The short answer: Spanish style ceiling beams are heavy, dark, exposed wood beams, and the traditional form is the viga: a round log 6 to 10 inches thick, spaced about 3 feet apart, with smaller poles called latillas laid across the top. In a modern house the beams are almost always decorative. Size them to the ceiling (roughly 4x6 for an 8-foot ceiling, 6x8 for 10 feet, 8x10 for 12 feet), space them 3 to 6 feet on center, and keep at least 7 feet 6 inches of headroom below. Faux polyurethane beams run about $15 to $35 per linear foot installed and weigh 1 to 2 pounds a foot; solid timber needs an engineer.
People searching for Spanish beams usually want one of two things: to recognize what they're looking at in an old house, or to put beams into a room that doesn't have them. This guide covers both, with the numbers that decide whether it looks right: thickness, spacing, headroom, weight and cost.
Three Kinds of Spanish Ceiling
| Ceiling | What you see | Where it comes from |
|---|---|---|
| Vigas and latillas | Round log beams, small poles or boards laid across them, flat ceiling | Spanish colonial and Pueblo building in New Mexico and the Southwest |
| Pitched beamed ceiling | Heavy beams and rafters following the roof, sometimes with trusses | Missions where rain called for pitched tile roofs |
| Beamed flat ceiling | Square-cut dark beams across a pale plaster ceiling | Spanish Colonial Revival houses of the 1910s to 1930s |

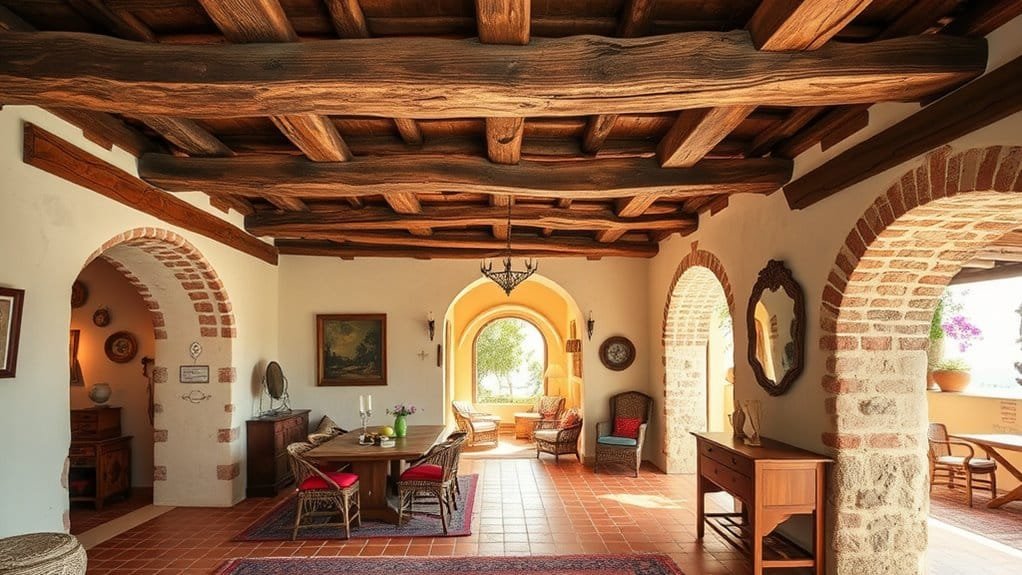

Vigas and latillas. The National Park Service describes the flat roofs of the Spanish colonial missions as "primary structural wood beams (vigas), secondary members –often branches of available vegetation– laid perpendicular to the beams, and topped with packed earth." Where it rained more, the missions used pitched roofs on "a framework of heavy timber primary beams and rafters" carrying clay barrel tiles. That's the look in the photo above.
The tree set the size of the room. Vigas are typically 6 to 10 inches in diameter and average 15 feet long, and because longer logs were hard to get, traditional viga rooms are usually less than 15 feet wide. Six vigas per room was standard, often spaced about 3 feet apart, and irregular, unequal spacing is itself characteristic of Spanish colonial work. The latillas above them could be hewn boards or, in plainer buildings, simply peeled branches. Decorative corbels, the brackets under beam ends, were used in the portales (porches) and inside.
The revival. Since the Pueblo Revival of the 1920s and 1930s, vigas have mostly been ornamental rather than structural. The same happened in the wider Spanish Colonial Revival, which took off after the 1915 Panama–California Exposition in San Diego and had its greatest popularity between 1915 and 1931. If your house dates from those years, its beams may be structural or purely decorative, and the way to know is to look from the attic or ask a builder before you cut, drill or hang anything from them. Our guide to Spanish Colonial Revival features covers the rest of that style's vocabulary.
Size and Spacing by Ceiling Height
Erstellt mit AIBeams that are too big for the ceiling make a room feel low; beams that are too thin look like trim. The most useful chart we found comes from BeechCreek Timber, a company that sells reclaimed beams, so treat it as a maker's rule of thumb. Its beam size chart uses actual, not nominal, dimensions (a 6x6 is a full six inches square):
| Ceiling height | Beam size | Spacing on center |
|---|---|---|
| 8 ft | 4x4, 4x6 | 2.5 to 4 ft |
| 9 ft | 4x6, 6x6 | 3 to 4.5 ft |
| 10 ft | 6x6, 6x8 | 3.5 to 5 ft |
| 11 ft | 6x8, 8x8 | 4 to 5.5 ft |
| 12 ft | 8x8, 8x10 | 4.5 to 6 ft |
| 13 ft and up | 8x10 and larger | 5 to 7 ft |
Other makers agree on the middle. Barron Designs says beams are typically spaced between two and eight feet apart and that four feet is the most common spacing. AZ Faux Beams describes the effect of each band: 2 to 3 feet apart "creates a cozier, more traditional look," 3 to 5 feet is "the most common and balanced," and 5 to 8 feet feels more open and modern. For a Spanish room, lean to the close end: historic vigas sat about 3 feet apart.
Headroom. Bob Vila's guide to exposed beams points out that many local codes set a minimum headroom of 7 feet 6 inches, so the bottom of the beams should stay above that. On an 8-foot ceiling, that leaves 6 inches, which is why the chart stops at 4x6 there.
A worked example. A living room 14 by 18 feet with a 9-foot ceiling: run the beams across the short 14-foot span, the way vigas were laid. At 4 feet on center you fit four beams across the 18 feet, with about 3 feet left at each end. Choose 6x6 beams, or 4x6 if the room is dark or the furniture is heavy. In a room with windows on one long side, start the layout from the center of the window wall so the beams frame the view symmetrically.
Beams vs. joists. Ordinary ceiling joists are narrower and closer together, often 24 inches apart, according to Bob Vila; beams are "beefier" and set four to five feet or more apart. If exposing your joists is the plan, you'll get a busier, more rustic ceiling than a beamed one.
Solid, Reclaimed or Faux
Erstellt mit AIWeight is the deciding number. Faux beams from Tilton Coffered Ceilings, a manufacturer, weigh 1 to 2 pounds per linear foot, about 10 to 40 pounds per beam. Solid timber is another world: Bob Vila notes that large beams "can weigh upwards of a thousand pounds and necessitate a crane to lift and position them."
Engineer and permit. Structural beams, in most communities, need a design approved by an engineer before a building permit is issued, with inspections during the work (Bob Vila). Faux beams of molded fiberglass or high-density polyurethane "can be installed without an engineer's approval," typically by screwing mounting blocks to the ceiling and fitting the hollow beam over them. Angi notes that permits for faux beam installation are rarely required unless structural changes or multifamily fire codes are involved, and cost $50 to $200 when they are.
So the practical split: a beam that holds up the roof is a construction project; a beam that looks like it does is a decorating project. Solid decorative beams sit in between. They carry no load but still weigh far more than the ceiling was built for, so ask a builder how they'll be fixed into the joists.
What It Costs
Angi's figures for faux beam materials, per linear foot:
| Material | Per linear foot | Trade-off |
|---|---|---|
| Polyurethane | $15–$25 | Light, realistic wood grain; can dent |
| High-density foam | $12–$20 | Very light and cheap; less durable |
| MDF | $12–$18 | Paintable; not for damp rooms |
| PVC | $18–$30 | Best for humid rooms; fewer finishes |
| Custom solid core, hand-hewn | $25–$35+ | Premium look; heavy, harder install |
Installed by a pro, Angi puts faux beams at $1,500 to $4,000 for a typical project, or $15 to $35 per linear foot, and HomeAdvisor gives the same range with an average of $3,000. By room, Angi gives $1,200 to $2,000 for one or two beams in a bedroom or hallway, $2,000 to $3,500 for three to five in a living or dining room, and $3,500 to $5,000 for six or more in a great room.
For structural work, Angi's beam installation guide budgets $350 to $500 for a structural engineer and $60 to $400 per linear foot for labor. The worked example above (four beams of 14 feet, 56 linear feet) comes to roughly $840 to $1,960 for faux beams at the per-foot rate, before painting or staining.
Reclaimed Beams: Check for Paint and Beetles
A beam salvaged from an old barn or mill is the most authentic option and the one that can bring problems into the house.
- Lead paint. The EPA notes that lead-based paint was banned for homes in 1978 and that about three-quarters of U.S. homes built before 1978 still contain some. Old timber can carry old paint. Ask the seller whether the beams were stripped and how, and don't sand painted wood indoors. If you hire someone to disturb painted surfaces in a pre-1978 home, the EPA requires them to be certified in lead-safe work practices.
- Wood-boring beetles. University of Maryland Extension's page on the old house borer describes oval exit holes "about 1/4 to 3/8 of an inch in diameter" with ragged edges, and fresh sawdust-like frass below as a sign the infestation is active. Its advice: inspect timber brought into the house for emergence holes, and prefer wood that has been properly kiln or air dried, which "is less likely to be infested."
Color and Finish
Traditional Spanish beams read dark against pale plaster. That contrast is the look, so if the walls are white or warm limewash, a dark walnut or espresso stain carries it. If the room is small or the ceiling is under 9 feet, a mid-brown or a limewashed beam keeps the ceiling from pressing down. Match the beams to one other dark element in the room, usually the doors or wrought iron, and to the warm floor below (terracotta, as in the photos here, or oak). For outside walls, our Spanish stucco color guide carries the same palette out to the facade.
Cleaning. A long-handled duster handles light dust; if beams get grimy, Bob Vila says to expect a ladder or scaffolding once or twice a year. Faux beams only need dusting or a damp cloth, and Angi notes they resist warping, cracking and pests.
Beams Beyond Spanish Rooms
- Mediterranean: the home style for beams. Dark beams, pale plaster, terracotta floor, iron lantern. Out in the garden, the same materials carry on in a hacienda-style backyard.
- Cottage: thinner, lighter beams, closer together, often painted white or left raw oak.
- Timeless: a few beams in a dark stain across a formal living room, spaced wide.

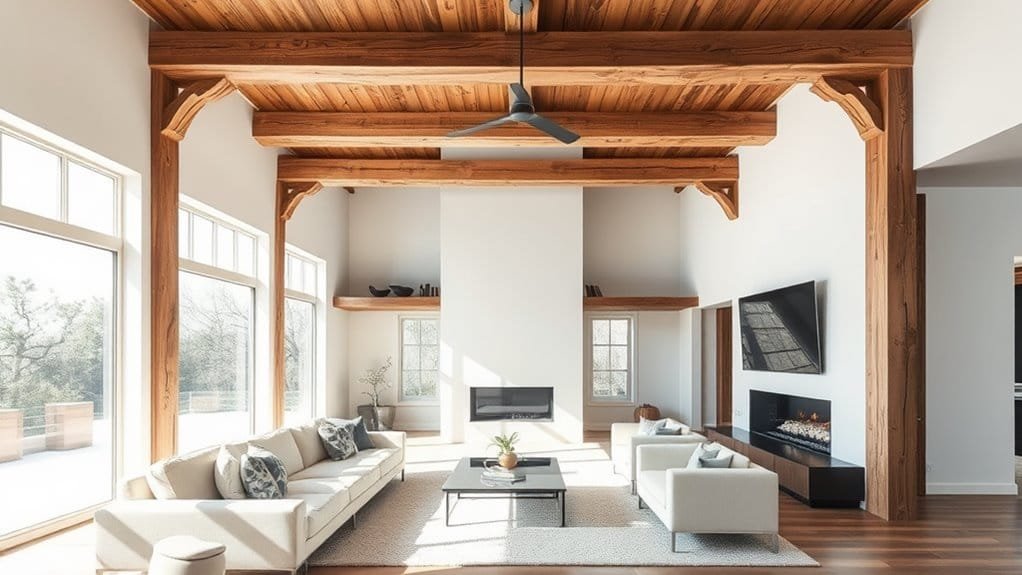

- Vintage-modern: beams against a white ceiling with mid-century furniture below, as in the photo above.
- Coastal: whitewashed or driftwood-grey beams, 4 to 5 feet apart.
Not sure which fits your house? The decorating style quiz takes two minutes.
The Short Version
- Vigas: round log beams, 6 to 10 inches thick, about 15 feet long, about 3 feet apart, with latillas across the top. Decorative since the 1920s and 1930s.
- Size to the ceiling: 4x4 to 4x6 at 8 feet, 6x6 to 6x8 at 10 feet, 8x8 to 8x10 at 12 feet.
- Spacing: 3 to 6 feet on center; 4 feet is most common; closer looks more traditional.
- Headroom: keep the beam bottoms above 7 feet 6 inches.
- Faux: 1 to 2 pounds a foot, no engineer needed, $15 to $35 per linear foot installed.
- Solid or structural: engineer ($350 to $500) and permit.
- Reclaimed: check for old paint and for oval beetle holes 1/4 to 3/8 inch across.
